Resin¶

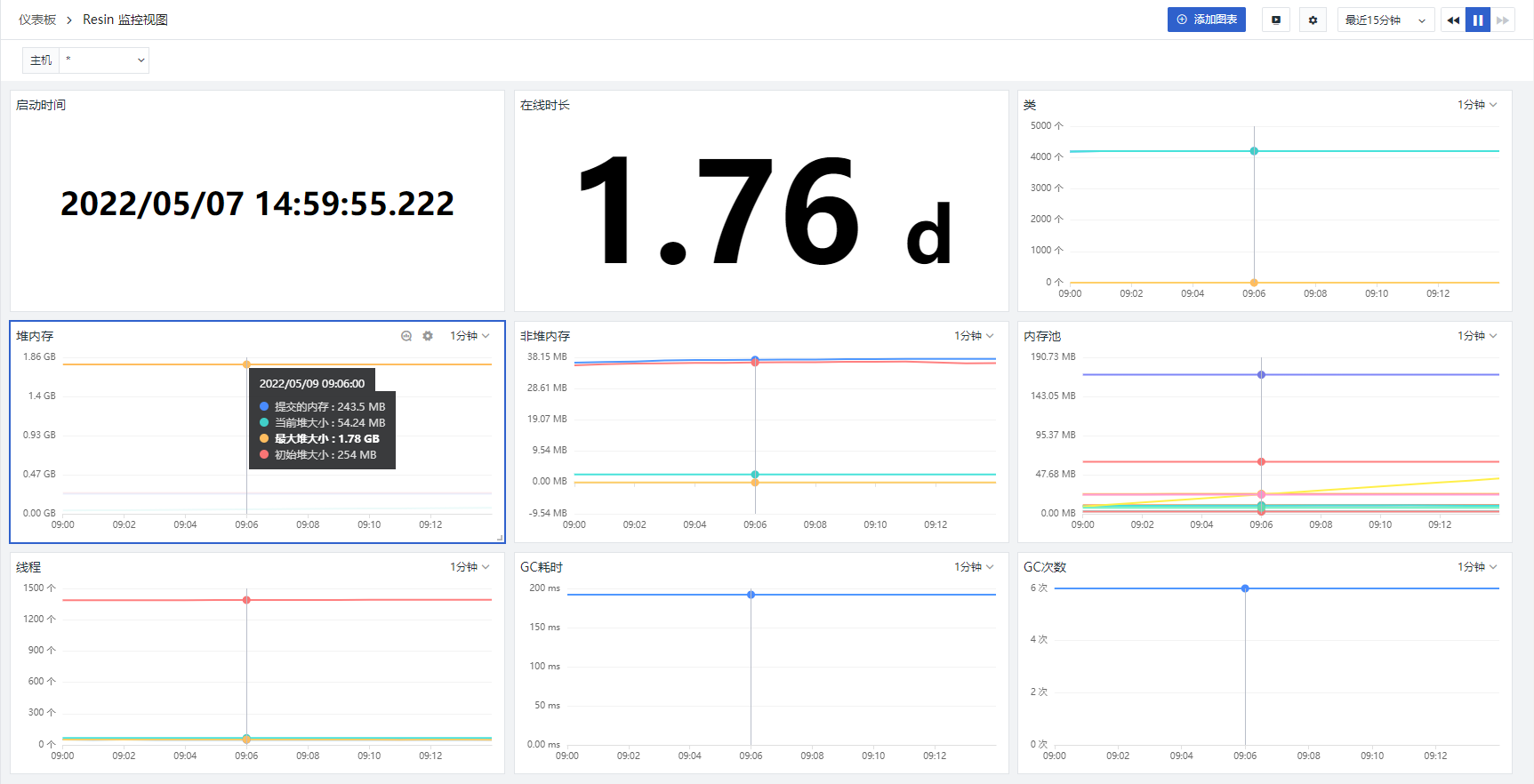

视图预览¶

Resin 性能指标展示，包括启动时间、堆内存、非堆内存、类、线程等。

版本支持¶

操作系统支持：Linux / Windows
Resin 版本：ALL

前置条件¶

Resin 服务器 <安装 Datakit>

安装配置¶

说明：示例 Resin 版本为 Windows 环境 Resin/4.0.66 (Windows ）。
指标采集是通过 jolokia-jvm-agent 来采集 Resin 运行时指标。

部署实施¶

(Linux / Windows 环境相同)

指标采集 (必选)¶

1、配置 config/resin.properties

新增 jvm_args ，参数说明：

javaagent：jolokia-jvm-agent
port=9530 # jolokia-jvm-agent对外暴露的指标端口

jvm_args  : -Xmx2048m -XX:MaxPermSize=256m -javaagent:C:/"Program Files"/datakit/data/jolokia-jvm-agent.jar=port=9530

2、重启 Resin

双击 resin.exe

3、开启 DataKit JVM 插件，复制 sample 文件

cd datakit/conf.d/jvm
cp jvm.conf.sample jvm.conf

4、修改 jvm.conf 配置文件

主要参数说明

urls：jolokia agent 访问地址
interval：采集频率

inputs.jvm.metric：jvm相关指标

# {"version": "1.2.12", "desc": "do NOT edit this line"}
[[inputs.jvm]]
# default_tag_prefix      = ""
# default_field_prefix    = ""
# default_field_separator = "."

# username = ""
# password = ""
# response_timeout = "5s"

## Optional TLS config
# tls_ca   = "/var/private/ca.pem"
# tls_cert = "/var/private/client.pem"
# tls_key  = "/var/private/client-key.pem"
# insecure_skip_verify = false

## Monitor Intreval
interval   = "10s"

# Add agents URLs to query
urls = ["http://localhost:9530/jolokia/"]

## Add metrics to read
[[inputs.jvm.metric]]
name  = "resin_runtime"
mbean = "java.lang:type=Runtime"
paths = ["Uptime","StartTime","VmVersion","SpecName"]

[[inputs.jvm.metric]]
name  = "resin_memory"
mbean = "java.lang:type=Memory"
paths = ["HeapMemoryUsage", "NonHeapMemoryUsage", "ObjectPendingFinalizationCount"]

[[inputs.jvm.metric]]
name     = "resin_garbage_collector"
mbean    = "java.lang:name=*,type=GarbageCollector"
paths    = ["CollectionTime", "CollectionCount"]
tag_keys = ["name"]

[[inputs.jvm.metric]]
name  = "resin_threading"
mbean = "java.lang:type=Threading"
paths = ["TotalStartedThreadCount", "ThreadCount", "DaemonThreadCount", "PeakThreadCount"]

[[inputs.jvm.metric]]
name  = "resin_class_loading"
mbean = "java.lang:type=ClassLoading"
paths = ["LoadedClassCount", "UnloadedClassCount", "TotalLoadedClassCount"]

[[inputs.jvm.metric]]
name     = "resin_memory_pool"
mbean    = "java.lang:name=*,type=MemoryPool"
paths    = ["Usage", "PeakUsage", "CollectionUsage"]
tag_keys = ["name"]

[inputs.jvm.tags]
# some_tag = "some_value"
# more_tag = "some_other_value"
  # ...

5、重启 DataKit (如果需要开启日志，请配置日志采集再重启)

datakit --restart

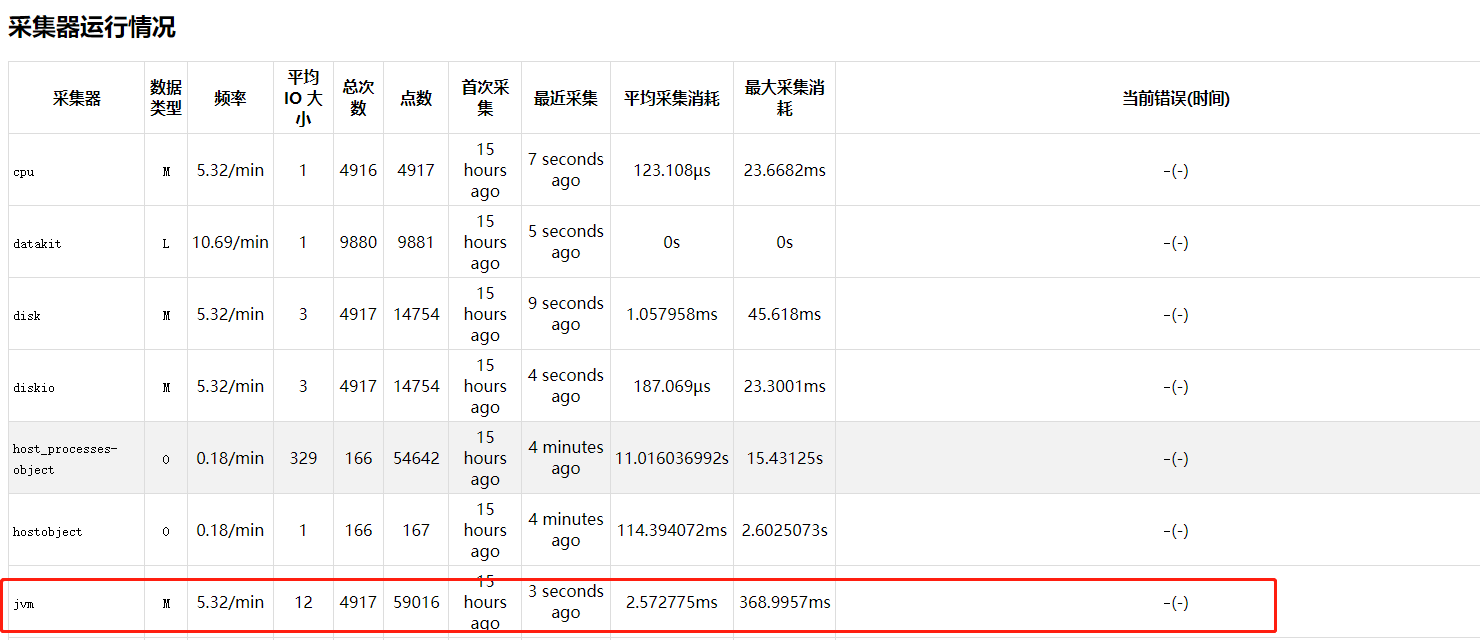

6、 JVM 指标采集验证

指标预览

日志采集 (非必选)¶

参数说明

logfiles ：日志文件路径 (通常填写访问日志和错误日志)
source：日志来源
service：服务名称

相关文档 < 文本数据处理（Pipeline）>

# {"version": "1.2.12", "desc": "do NOT edit this line"}

[[inputs.logging]]
## required
logfiles = [
"D:/software_installer/resin-4.0.66/log/*.log",
]
# only two protocols are supported:TCP and UDP
# sockets = [
#    "tcp://0.0.0.0:9530",
#    "udp://0.0.0.0:9531",
# ]
## glob filteer
ignore = [""]

## your logging source, if it's empty, use 'default'
source = "resin"

## add service tag, if it's empty, use $source.
service = "resin"

## grok pipeline script name
pipeline = ""

## optional status:
##   "emerg","alert","critical","error","warning","info","debug","OK"
ignore_status = []

## optional encodings:
##    "utf-8", "utf-16le", "utf-16le", "gbk", "gb18030" or ""
character_encoding = ""

## datakit read text from Files or Socket , default max_textline is 32k
## If your log text line exceeds 32Kb, please configure the length of your text,
## but the maximum length cannot exceed 32Mb
# maximum_length = 32766

## The pattern should be a regexp. Note the use of '''this regexp'''
## regexp link: https://golang.org/pkg/regexp/syntax/#hdr-Syntax
# multiline_match = '''^\S'''

## removes ANSI escape codes from text strings
remove_ansi_escape_codes = false

## if file is inactive, it is ignored
## time units are "ms", "s", "m", "h"
# ignore_dead_log = "1h"

[inputs.logging.tags]
# some_tag = "some_value"
# more_tag = "some_other_value"

重启 Datakit (如果需要开启自定义标签，请配置插件标签再重启)

datakit --restart

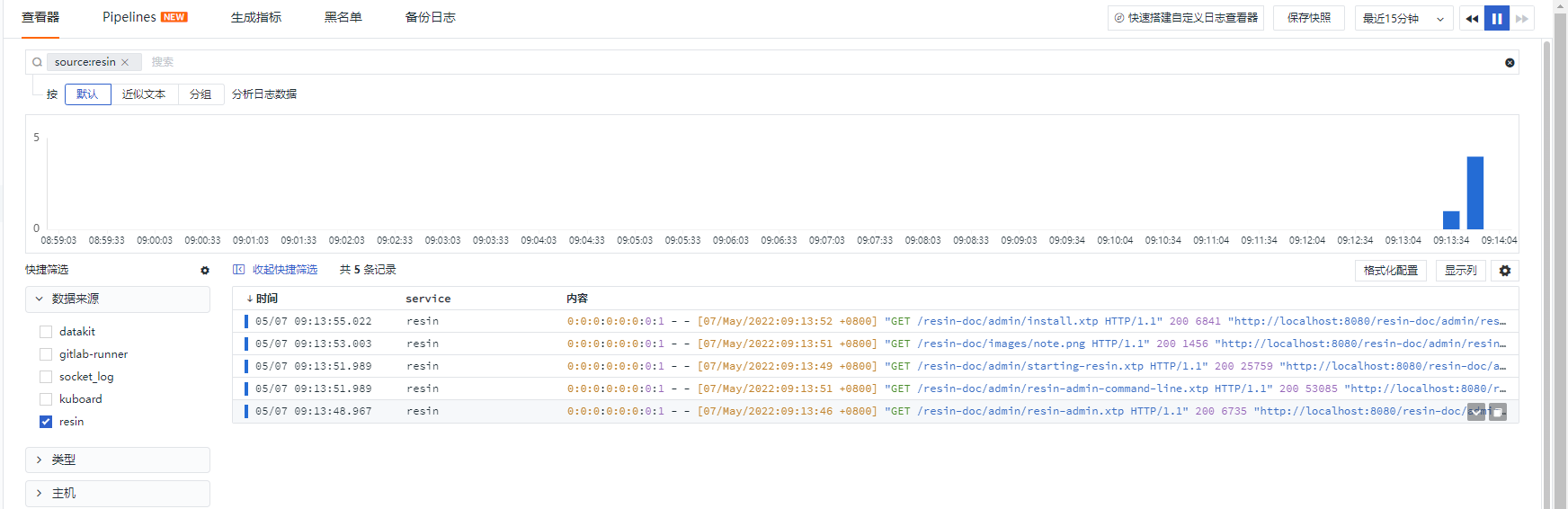

日志预览

插件标签 (非必选）¶

参数说明

该配置为自定义标签，可以填写任意 key-value 值
以下示例配置完成后，所有 Resin 指标都会带有 app = "resin-test" 的标签，可以进行快速查询
相关文档 TAG 在观测云中的最佳实践>

# 示例
[inputs.jvm.tags]
   app = "resin-test"

重启 DataKit

datakit --restart

场景视图¶

<场景 - 新建仪表板 - 模板库 - 系统视图 - Resin 监控视图>

指标详解¶

指标集 resin_runtime¶

指标	描述
`Uptime`	在线时长
`StartTime`	启动时间
`VmVersion`	虚拟机版本
`SpecName`	Java 虚拟机规范名称

指标集 resin_memory¶

指标	描述
`HeapMemoryUsage`	堆内存
`NonHeapMemoryUsage`	非堆内存

指标集 resin_threading¶

指标	描述
`TotalStartedThreadCount`	启动线程总数
`ThreadCount`	活动线程数量
`DaemonThreadCount`	守护线程数量
`PeakThreadCount`	峰值

指标集 resin_class_loading¶

指标	描述
LoadedClassCount	已加载当前类
UnloadedClassCount	已卸载类总数
TotalLoadedClassCount	已加载类总数

指标集 resin_memory_pool¶

指标	描述
Usage	已使用内存池
PeakUsage	已使用内存池峰值
CollectionUsage	已使用内存池回收

指标集 resin_garbage_collector¶

指标	描述
CollectionTime	GC时间
CollectionCount	GC次数

常见问题排查¶

<无数据上报排查>
